STEALTH
Hydraulic Torque Wrench

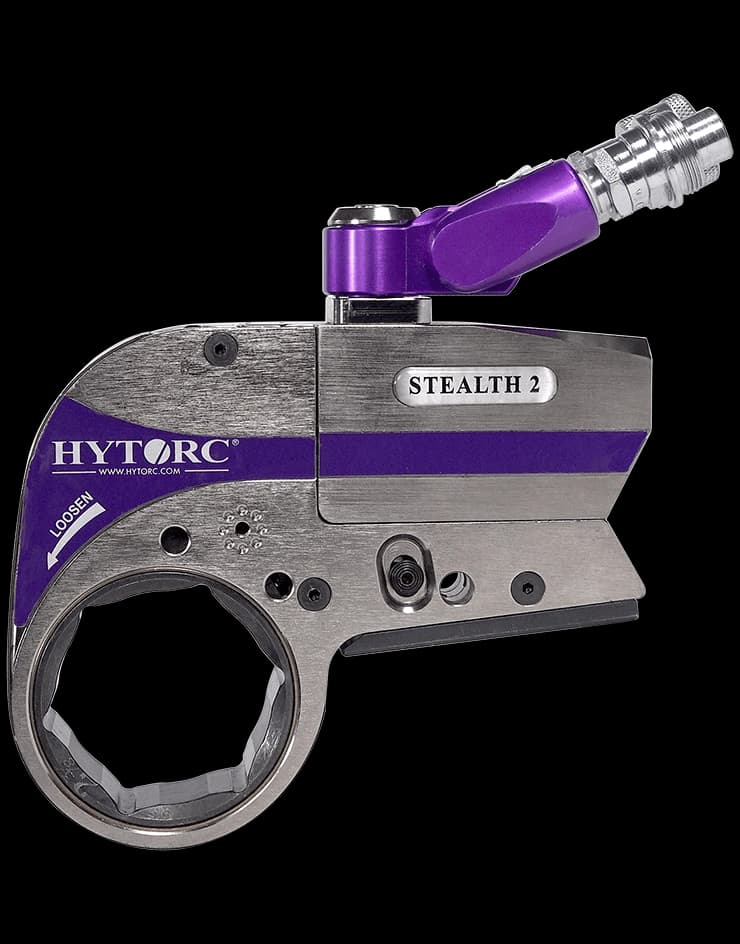

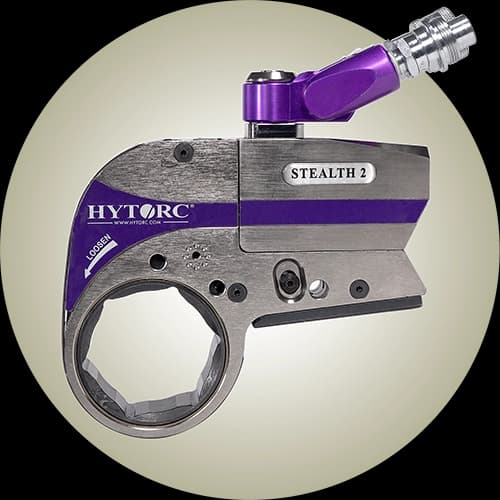

The STEALTH Low Clearance Hydraulic Torque Wrench

Dual Piston Low-Clearance Hydraulic Torque Wrench with HYTORC Washer Compatibility.

The slim body of the STEALTH Hydraulic Torque Wrench is designed to fit where other torque tools can't, making it perfect for low clearance bolting. The 360°/180° Uniswivel allows for safe, convenient hose adjustments. Bolt hands-free with the optional tool retainer, keeping your hands safer. Tackle every bolting job, even in hard-to-reach areas, with the reliable performance of the STEALTH.

Category: Hydraulic Tools

Product Highlights

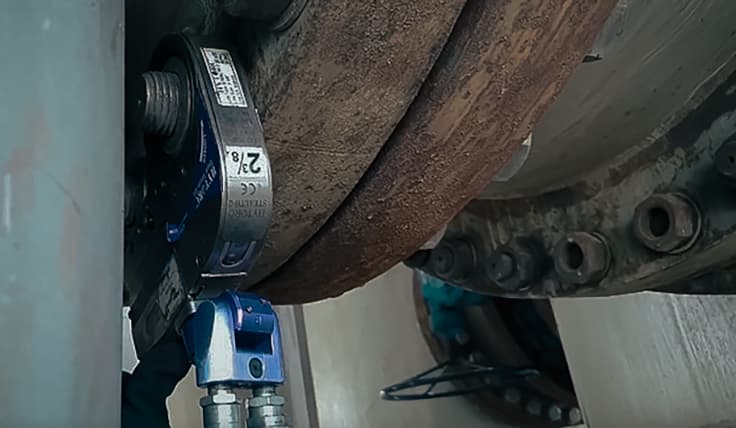

Low Clearance

Fits into places other torque tools can't.

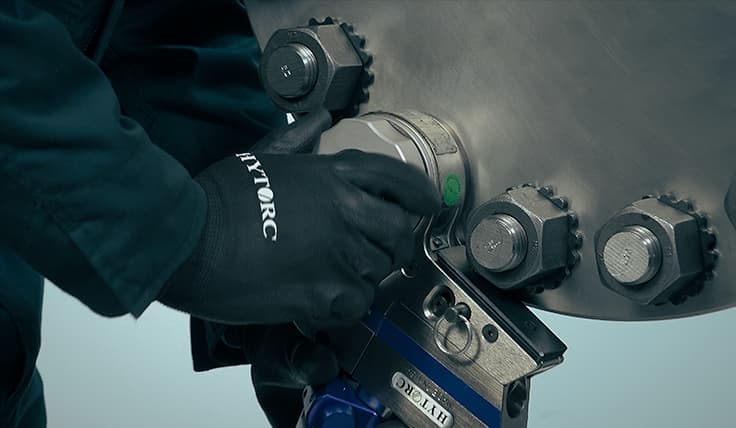

A technician attaching the Tool Retainer to the STEALTH Hydraulic Torque Wrench, allowing it to stay fixed on an application without being held.

Hands-Free Operation

The optional tool retainer makes bolting safer.

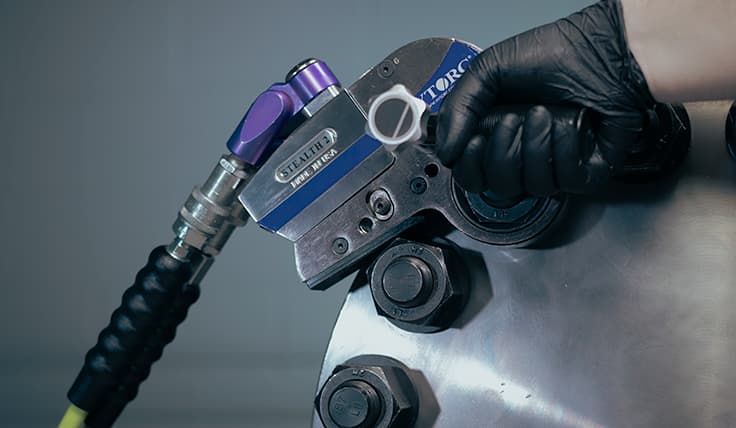

The STEALTH Hydraulic Torque Wrench on an application using the Safety Handle.

ATEX Option

Can be fitted for use in explosive environments.

Torque Ranges (Imperial)Torque Ranges (Metric)

Click any model to open its full torque chart in a new window.

Torque ranges in foot-pounds
Available Models	Hex (in)	Weight (lbs)	Torque Range (ft-lbs)
STEALTH 2 (opens in a new tab)	1 1/8" - 2 3/8"	3.99	278-1,869
STEALTH 4 (opens in a new tab)	1 7/16" - 3 1/8"	4.3	604-4,020
STEALTH 8 (opens in a new tab)	2" - 3 7/8"	6.7	1,199-7,984
STEALTH 14 (opens in a new tab)	2 3/4" - 4 5/8"	10.4	2,105-14,255
STEALTH 22 (opens in a new tab)	2 15/16" - 5"	15.4	3,250-21,875
STEALTH 36 (opens in a new tab)	3 1/2" - 6 1/2"	24.1	4,917-34,722

Torque ranges in newton-meters
Available Models	Hex (mm)	Weight (kg)	Torque Range (Nm)
STEALTH 2 (opens in a new tab)	28 - 60	2	377-2,534
STEALTH 4 (opens in a new tab)	36 - 80	2	819-5,450
STEALTH 8 (opens in a new tab)	50 - 100	3	1,625-10,823

Product Comparison

STEALTH
- Multi-Direction Hose Swivel
- Built-In Lock-On Release
- No Auto Pressure Release
- No Cycle Counter
- 278 - 34,722 ft. lbs.
- 377 - 47077 Nm Torque Output
- Total Hands-Free Bolting*
STEALTH
*Only when used with the Tool Retainer accessory.

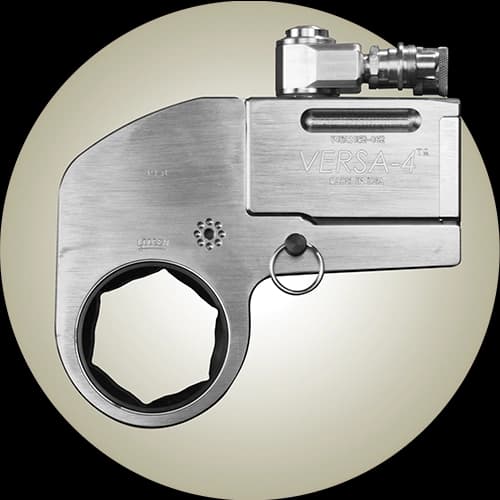

VERSA
- Multi-Direction Hose Swivel
- No Lock-On Release
- No Auto Pressure Release
- No Cycle Counter
- 150 - 35,874 ft. lbs.
- 204 - 48639 Nm Torque Output
- No Support For Pinch-Point-Free Bolting
View VERSA

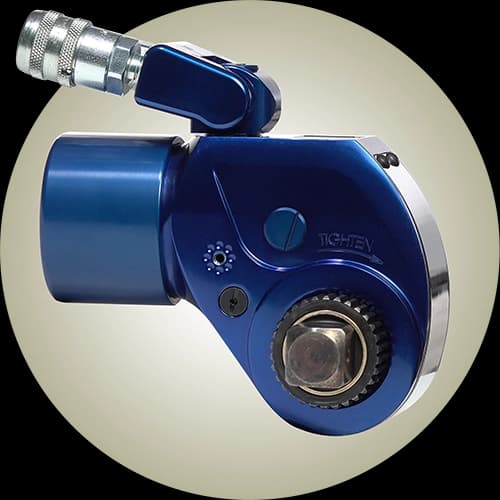

MXT+
- Multi-Direction Hose Swivel
- Built-In Lock-On Release
- Built-In Auto Pressure Release
- Built-In Cycle Counter
- 205 - 12,148 ft. lbs.
- 278 - 16468 Nm Torque Output
- Pinch-Point-Free Bolting*
View MXT+
*Only when used with a HYTORC Washer system.

Related Accessories

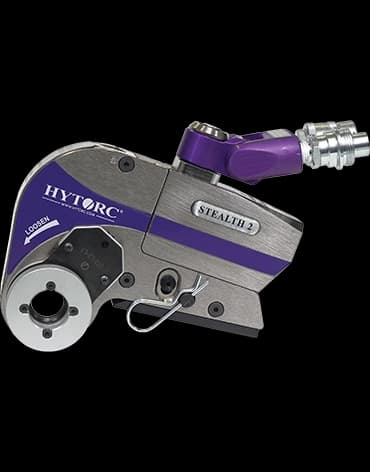

Tool Retainer
Secures the tool onto the application, enabling hands-free operation and reducing the risk of drop hazards.

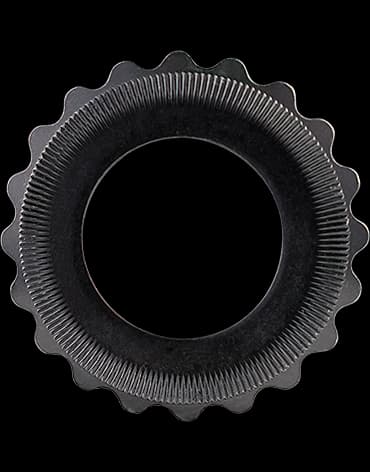

HYTORC Washer
Eliminates the need for a separate reaction fixture. Safer and more efficient. ASTM compliant.
HYTORC Nut
Converts torque into tension, eliminating galling and the need for a separate reaction fixture.
Male Hex Adapter
Connects torque tools to hexagonal fasteners for more secure and efficient bolting.

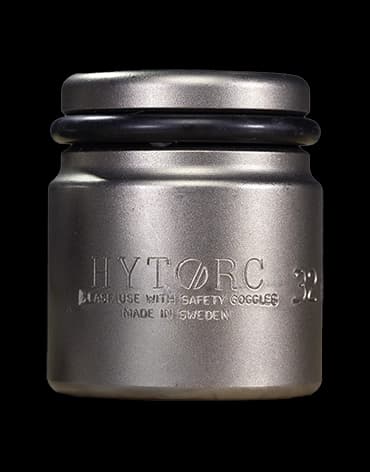

Sockets
Available in standard, deepwell, 6 point and 12 point.
