Hydraulic Tools

VERSA
Hydraulic Torque Wrench

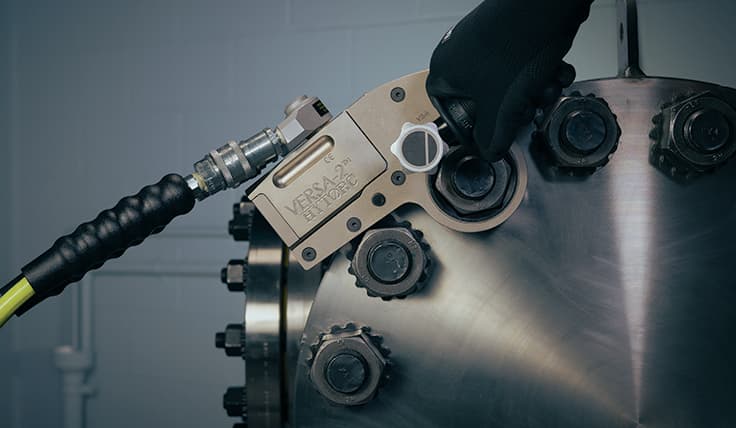

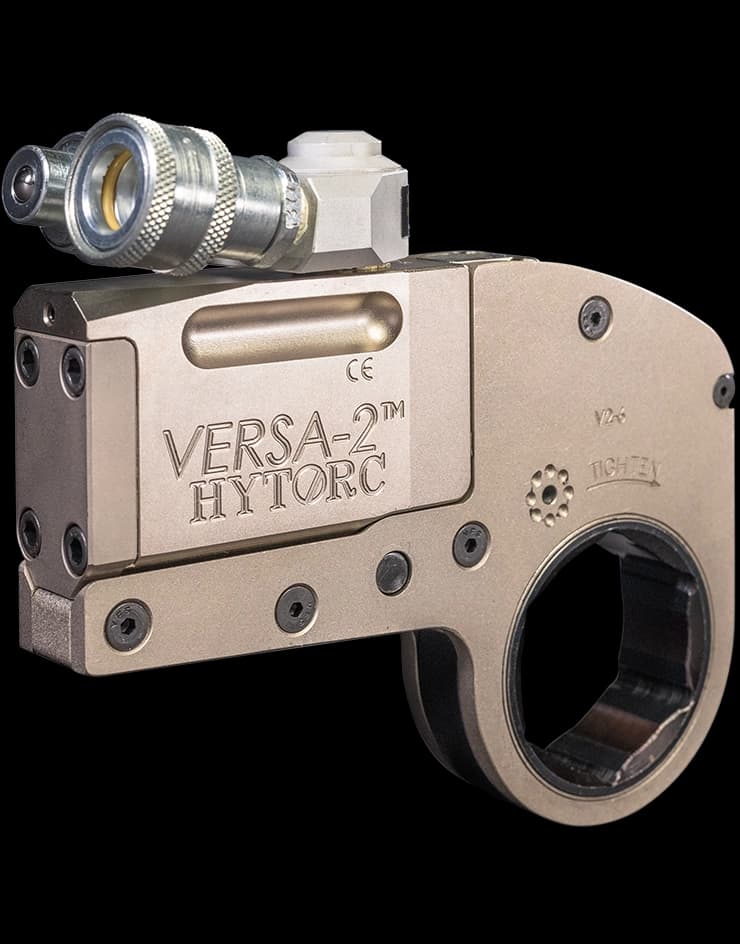

The VERSA Low Clearance Hydraulic Torque Wrench

Low-Clearance Hydraulic Torque Wrench for Tight Space and Budget-Smart Bolting.

The VERSA Hydraulic Torque Wrench is the ultimate tool for tight spaces, fitting effortlessly into the smallest clearances along with precise and repeatable torque for reliable performance with this simple to use hydraulic torque tool. With a simple 3-moving-part design, the VERSA minimizes repairs and maximizes production. The 360° Uniswivel allows for easy hose positioning, enhancing safety and usability. Trusted worldwide for over 30 years, the VERSA delivers power and versatility, making bolting operations efficient and straightforward.

Category: Hydraulic Tools

Product Highlights

Simple Operation

User-friendly and great for bolters of all skill levels.

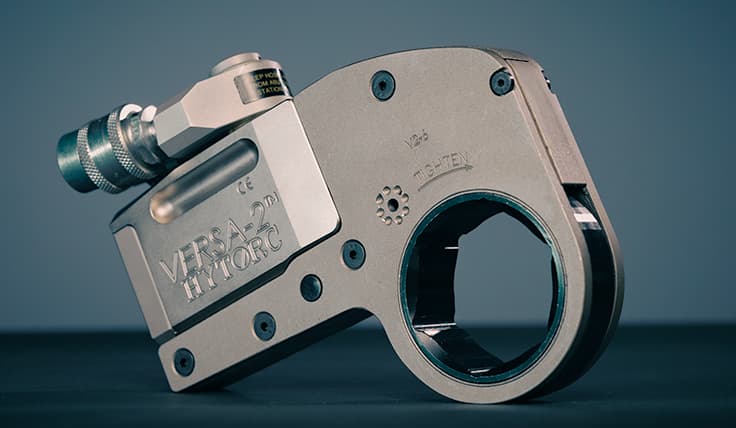

An angled view of the VERSA Low Clearance Hydraulic Torque Wrench showing the thinness of the body.

Slim Profile

Excellent for use in tight spaces.

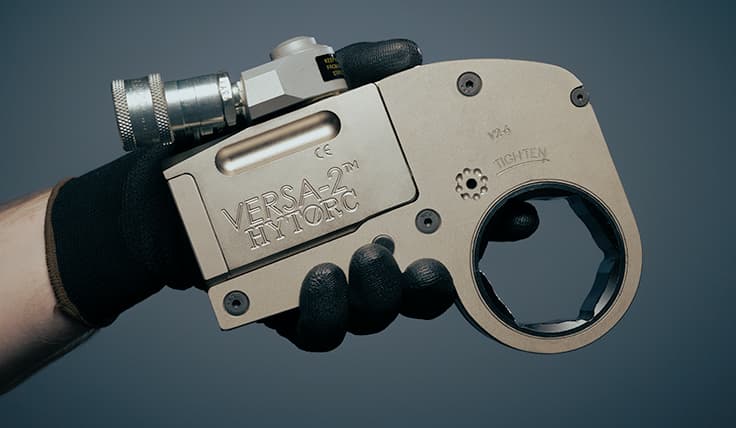

A side view of the VERSA Low Clearance Hydraulic Torque Wrench focused on the connection of the two components - the powerhead and the link.

Interchangeable Links

Different links let you bolt on applications of varying sizes.

Torque Ranges (Imperial)Torque Ranges (Metric)

Click any model to open its full torque chart in a new window.

Torque ranges in foot-pounds
Available Models	Hex (in)	Weight (lbs)	Torque Range (ft-lbs)
VERSA 1 (opens in a new tab)	7/8" - 1 13/16"	2.8	150-1,050
VERSA 2 (LINK 1-6) (opens in a new tab)	1" - 2"	3.25	261-1,780
VERSA 2 (LINK 7-8) (opens in a new tab)	2 1/16" - 2 3/8"	3.25	278-1,920
VERSA 4 (opens in a new tab)	1 7/16" - 3 1/8"	7.3	654-4,503
VERSA 8 (opens in a new tab)	2" - 3 7/8"	11.6	1,350-9,000
VERSA 14 (opens in a new tab)	2 3/4" - 4 5/8"	19.25	2,148-14,832
VERSA 20 (opens in a new tab)*	3 7/8" - 5 3/8"	24.43	3,088-21,458
VERSA 30 (opens in a new tab)*	3 3/8" - 6 1/2"	46.71	5,220-35,874

Torque ranges in newton-meters
Available Models	Hex (mm)	Weight (kg)	Torque Range (Nm)
VERSA 1 (opens in a new tab)	28 - 46	1	204-1,423
VERSA 2 (LINK 1-6) (opens in a new tab)	19 - 51	1	354-2,413
VERSA 2 (LINK 7-8) (opens in a new tab)	52 - 60	1	377-2,603

* Values provided are estimated due to individualized calibration of this model. Please contact us for additional info.

Product Comparison

VERSA
- Multi-Direction Hose Swivel
- No Lock-On Release
- No Auto Pressure Release
- No Cycle Counter
- 150 - 35,874 ft. lbs.
- 204 - 48639 Nm Torque Output
- No Support For Pinch-Point-Free Bolting
VERSA
STEALTH
- Multi-Direction Hose Swivel
- Built-In Lock-On Release
- No Auto Pressure Release
- No Cycle Counter
- 278 - 34,722 ft. lbs.
- 377 - 47077 Nm Torque Output
- Total Hands-Free Bolting*
View STEALTH
*Only when used with the Tool Retainer accessory.
MXT+
- Multi-Direction Hose Swivel
- Built-In Lock-On Release
- Built-In Auto Pressure Release
- Built-In Cycle Counter
- 205 - 12,148 ft. lbs.
- 278 - 16468 Nm Torque Output
- Pinch-Point-Free Bolting*
View MXT+
*Only when used with a HYTORC Washer system.

Related Accessories

Male Hex Adapter
Connects torque tools to hexagonal fasteners for more secure and efficient bolting.
Reaction Pad
Reaction fixture for low clearance bolting.
Alco Arm
Offers a longer reaction option for low clearance tools, providing greater versatility.
Square Drive Adapter
Converts a hex drive into a square drive.
Hex Reducer Sleeve
Adapter that enables a tool to handle nuts of varying sizes, maximizing efficiency and adaptability.
