Hydraulic Tools

MXT

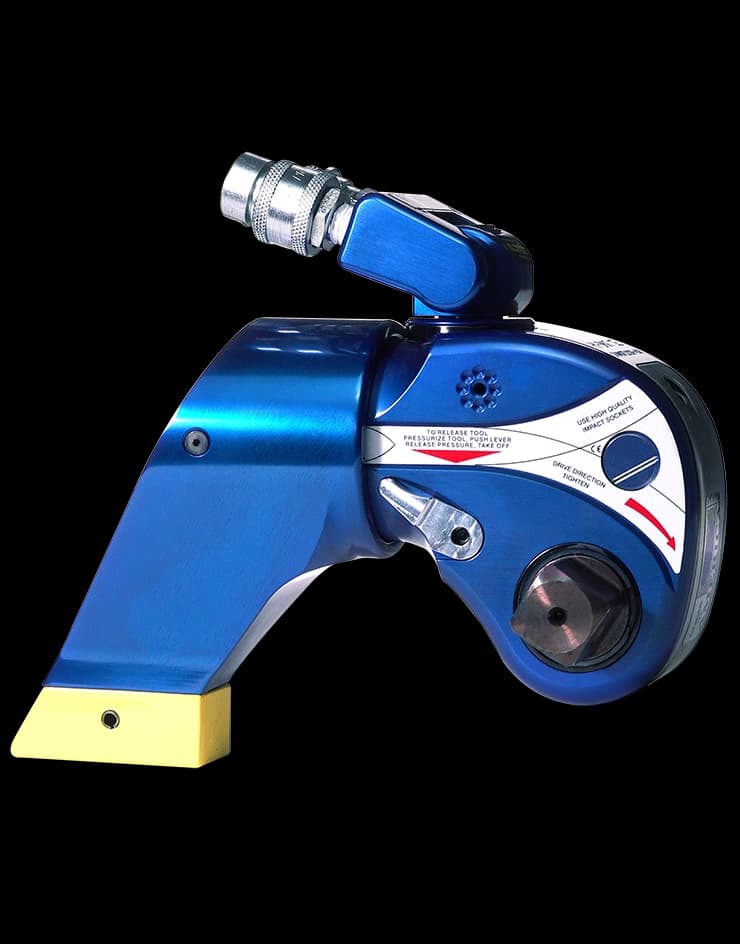

Hydraulic Torque Wrench

Compact and Rugged Hydraulic Torque Wrench for General Industrial Bolting.

Designed specifically for tight spaces, the MXT Hydraulic Torque Wrench (also known as the HYTORC Blue Tool) is your go-to solution for projects with limited working radius. Its Uniswivel feature provides a 360° rotatable and 120° foldable hose connection, making positioning effortless in almost any workspace. Trusted for over 30 years, the MXT delivers unmatched quality and durability, ensuring reliable performance for all your torque needs.

Category: Hydraulic Tools

Product Highlights

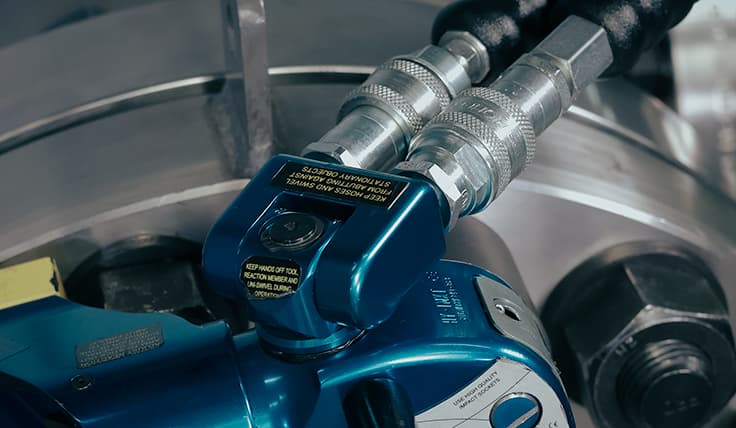

360°x120° Uniswivel

Designed for ease of movement and safer hose placement.

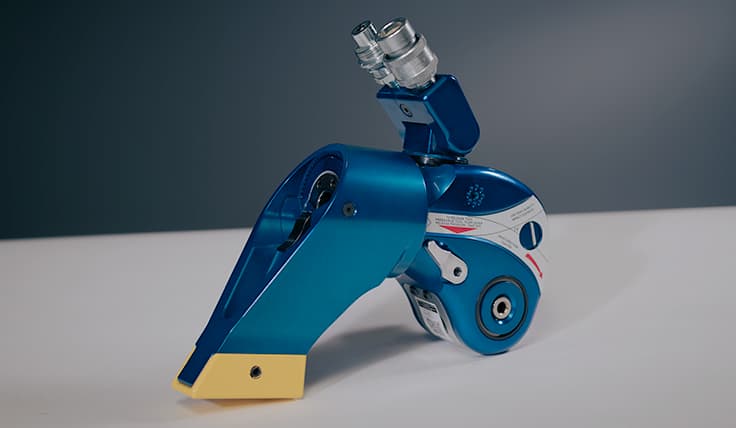

Reaction Pawl

Keeps things secure and stable, giving you peace of mind with every job.

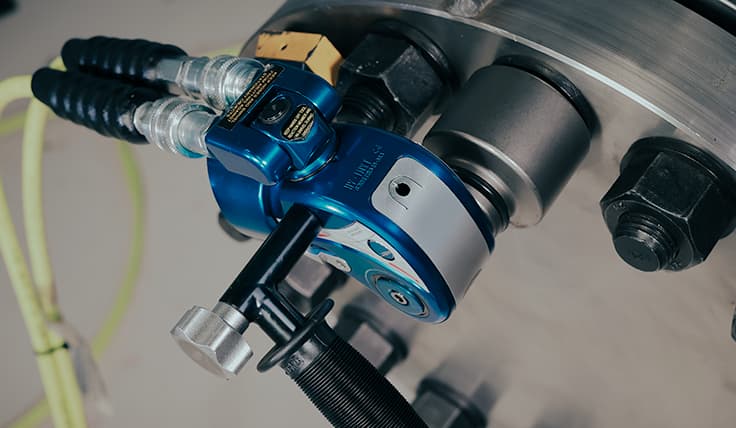

The MXT Hydraulic Torque Wrench in action on an application

Proven & Simple

A reliable tool that can deliver consistent results with ease.

Torque Ranges (Imperial)Torque Ranges (Metric)

Click any model to open its full torque chart in a new window.

Torque ranges in foot-pounds
Available Models	Drive	Weight (lbs)	Torque Range (ft-lbs)
HY-.7MXT (opens in a new tab)	3/4"	2.69	118-822
HY-1MXT (opens in a new tab)	3/4"	3.95	200-1,340
HY-3MXT (opens in a new tab)	1"	8.29	480-3,230
HY-5MXT (opens in a new tab)	1 1/2"	14.2	835-5,590
HY-10MXT (opens in a new tab)	1 1/2"	24.8	1,693-11,520
HY-15MXT (opens in a new tab)	2 1/2"	36	2,268-15,399
HY-20MXT (opens in a new tab)	2 1/2"	43.4	2,960-19,760
HY-35MXT (opens in a new tab)	2 1/2"	77.45	5,400-37,100

Torque ranges in newton-meters
Available Models	Drive	Weight (kg)	Torque Range (Nm)
HY-.7MXT (opens in a new tab)	3/4"	1	160-1,114
HY-1MXT (opens in a new tab)	3/4"	2	271-1,817
HY-3MXT (opens in a new tab)	1"	4	651-4,379
HY-5MXT

Product Comparison

MXT
- Multi-Direction Hose Swivel
- Built-In Lock-On Release
- No Auto Pressure Release
- No Cycle Counter
- 118 - 37,100 ft. lbs.
- 160 - 50301 Nm Torque Output
- No Support For Pinch-Point-Free Bolting
MXT
MXT+
- Multi-Direction Hose Swivel
- Built-In Lock-On Release
- Built-In Auto Pressure Release
- Built-In Cycle Counter
- 205 - 12,148 ft. lbs.
- 278 - 16468 Nm Torque Output
- Pinch-Point-Free Bolting*
View MXT+
*Only when used with a HYTORC Washer system.
STEALTH
- Multi-Direction Hose Swivel
- Built-In Lock-On Release
- No Auto Pressure Release
- No Cycle Counter
- 278 - 34,722 ft. lbs.
- 377 - 47077 Nm Torque Output
- Total Hands-Free Bolting*
View STEALTH
*Only when used with the Tool Retainer accessory.

Related Accessories

Sockets
Available in standard, deepwell, 6 point and 12 point.
Backup Washer
Eliminates the need for a backup wrench. Safer and more efficient (no pinch points). Complies with ASTM F3394/F3394M Standard.
Alco Arm
Offers a longer reaction option for jobs where reaction points are just out of reach.
Sleeve with Foot
Provides a shorter reaction fixture while protecting the tool's spline area.
Side Safety Handle
Allows for improved grip and safety, providing better control during tool operation.
