EDGE S
Hydraulic Torque Wrench
Versatile Cost-Effective Hydraulic Torque Wrench.

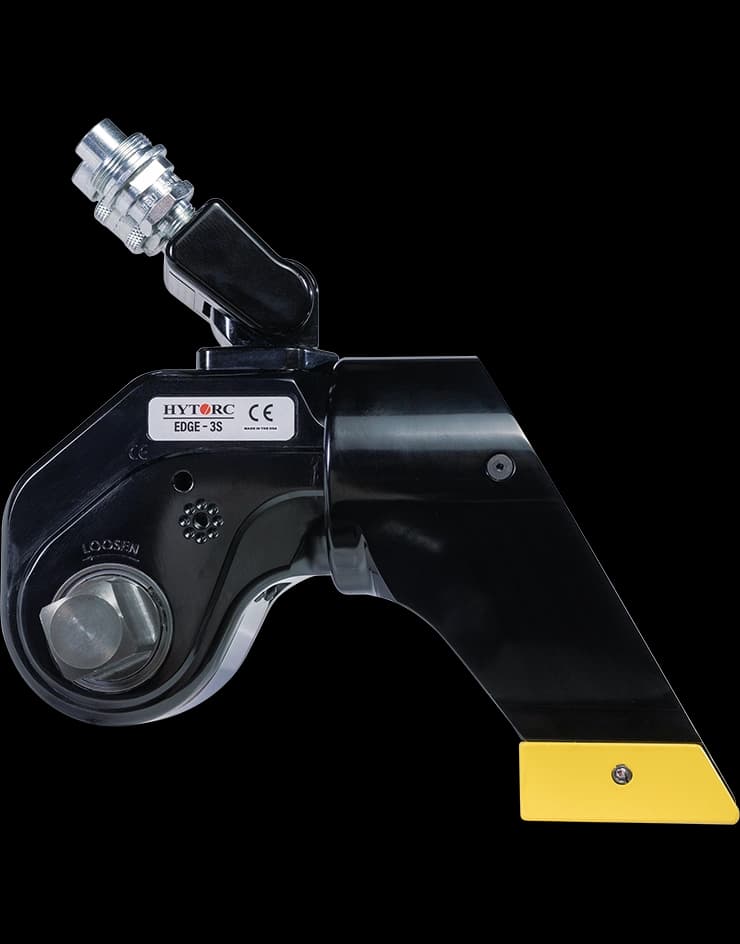

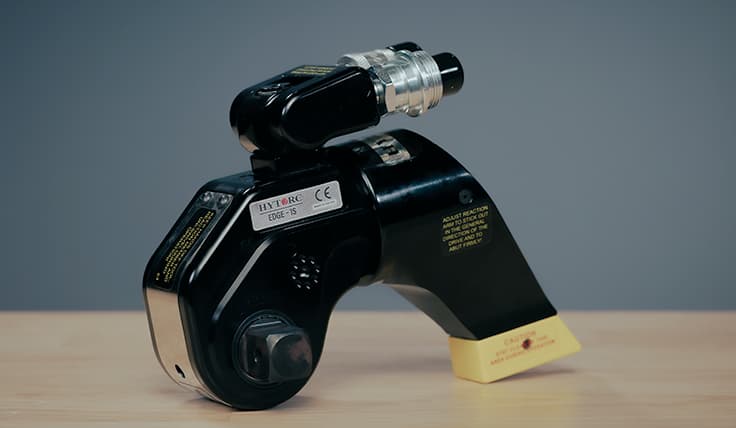

The EDGE S Hydraulic Torque Wrench is designed with your needs in mind. Switching between Torque and Loosen modes is a breeze with the removable square drive. An adjustable safety handle can be set up on either side for a more comfortable and ergonomic grip. With only three moving parts, the EDGE S reduces maintenance and operating costs while delivering reliable, accurate torque. Its 360°x180° Uniswivel means you can say goodbye to tangled hoses. Complemented by ALCO arms and hex drives, it makes every bolting job simpler and safer.
Product Highlights

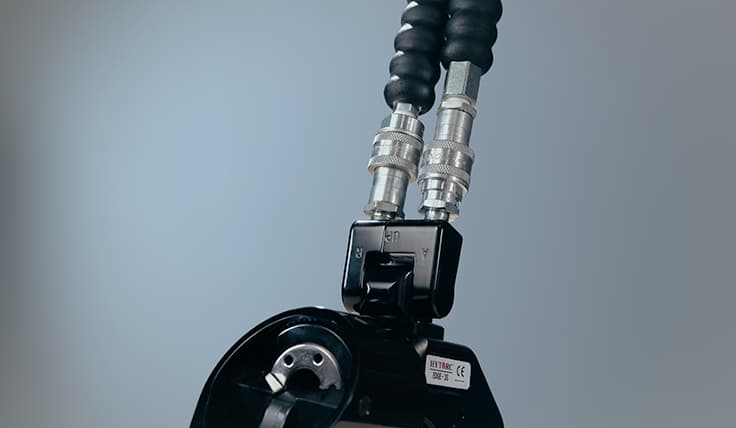

360°x180° Uniswivel
Gives you unmatched flexibility and less tangled hoses.
3-Moving-Part Design
Minimizes wear and tear for more reliable performance and easy maintenance.
Simple Operation
A great tool for bolters of all skill levels.
Click any model to open its full torque chart in a new window.
Loading torque ranges.
Product Comparison
EDGE S
- Multi-Direction Hose Swivel
- No Lock-On Release
- No Auto Pressure Release
- No Cycle Counter
- 178 - 29,650 ft. lbs.
- 241 - 40200 Nm Torque Output
- No Support For Pinch-Point-Free Bolting
EDGE SMXT+
- Multi-Direction Hose Swivel
- Built-In Lock-On Release
- Built-In Auto Pressure Release
- Built-In Cycle Counter
- 205 - 12,148 ft. lbs.
- 278 - 16468 Nm Torque Output
- Pinch-Point-Free Bolting*
View MXT+*Only when used with a HYTORC Washer system.
STEALTH
- Multi-Direction Hose Swivel
- Built-In Lock-On Release
- No Auto Pressure Release
- No Cycle Counter
- 278 - 34,722 ft. lbs.
- 377 - 47077 Nm Torque Output
- Total Hands-Free Bolting*
View STEALTH*Only when used with the Tool Retainer accessory.
Related Accessories
Sockets
Available in standard, deepwell, 6 point and 12 point.
Backup Washer
Eliminates the need for a backup wrench. Safer and more efficient (no pinch points). Complies with ASTM F3394/F3394M Standard.

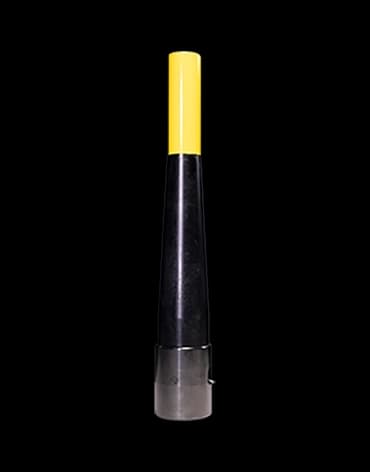

Alco Arm
Offers a longer reaction option for jobs where reaction points are just out of reach.

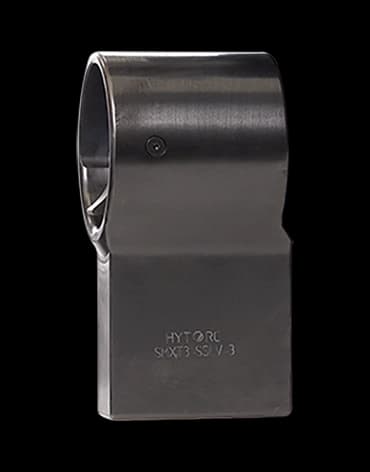

Sleeve with Foot
Provides a shorter reaction fixture while protecting the tool's spline area.

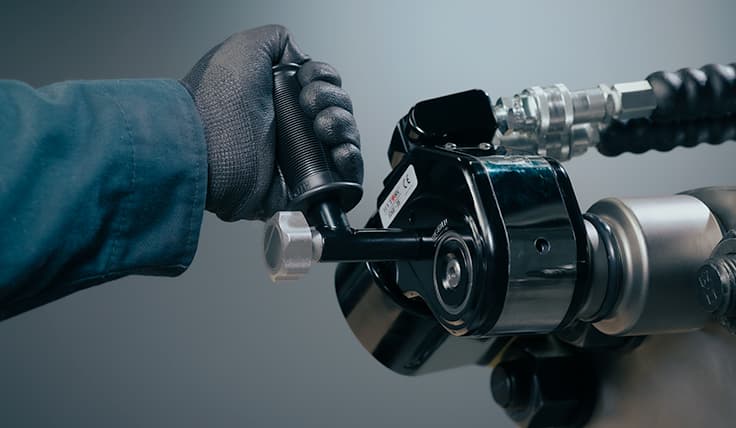

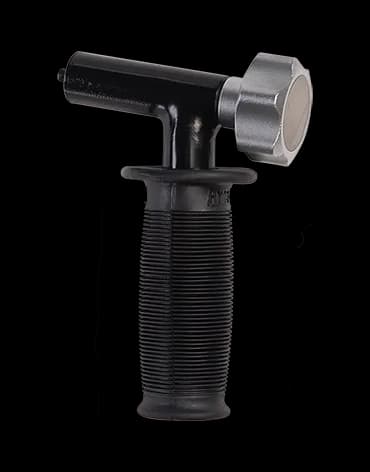

Side Safety Handle
Allows for improved grip and safety, providing better control during tool operation.
